Stainless steel gassprings
| Features | |
|---|
| Piston rod | AISI 303 |
| Cylinder | AISI 304 |
| Fittings | AISI 303 |

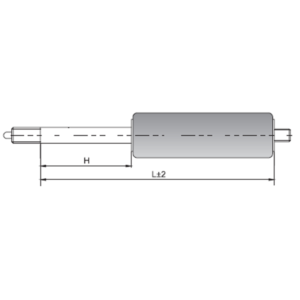

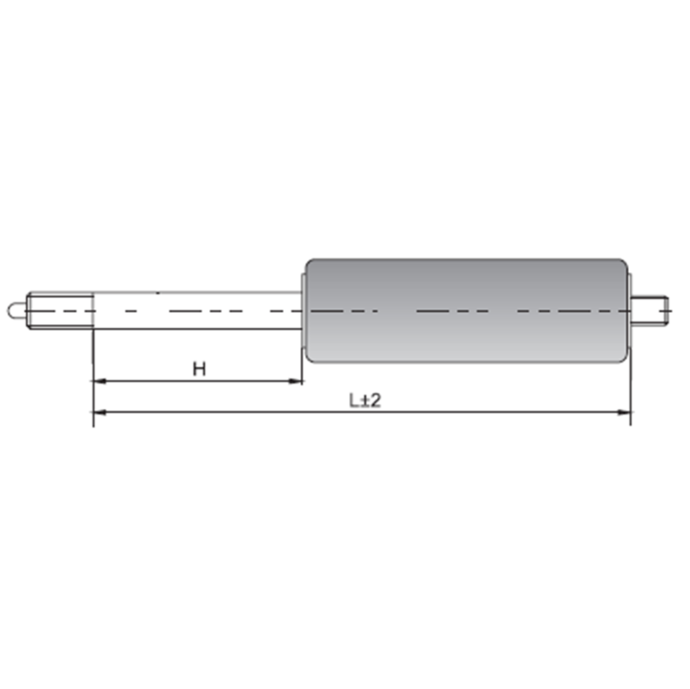

| Type | Extension force F1 (Newton) | Standard length GL (mm) | Progression compression | Locking force extension(Newton) | Locking force (Newton) |
|---|
| Elastic locking | | | | | |
| F 06-19 | 40-400 | L = 2,4 x H + 70 | 20% | | |
| F 10-23 | 150-1200 | L = 2 x H + 90 | 30% | | |
| F 10-28 | 150-1200 | L = 2 x H + 90 | 20% | | |
| F 10-40 | 250-1200 | L = 2 x H + 90 | 15% | | |
| Rigid locking | | | | | |
| S 06-19 | 60-400 | L = 2,4 x H +65 | 35% | 3 x F1 | 3 x F1 |
| S 10-23 | 150-1200 | L = 2,4 x H + 90 | 50% | 4 x F1 | max. 3000N |
| S 10-28 | 150-1200 | L = 2,4 x H +90 | 50% | 5,5 x F1 | max. 3000N |
| S 10-40 | 250-1200 | L = 2,2 x H + 100 | 33% | 12 x F1 | max. 3000N |
| Absolutely rigid locking | | | | | |
| X 10-23 | 250-1000 | L = 2,8 x H + 80 | | 10.000N | 2 x F1 |
| X 10-28 | 250-1000 | L = 2,6 x H + 80 | | 10.000N | 2 x F1 |
End fittings, strokes and extras are equivalent to the according standard series in normal steel. Eyelets on the cylinder are equivalent to the according piston rod end fittings.
