Series V2 Tension springs

Stainless Tension springs


Features
Piston rodAISI 303
CylinderAISI 304
FittingsAISI 303

High corrosion resistance, valve, stainless steel design

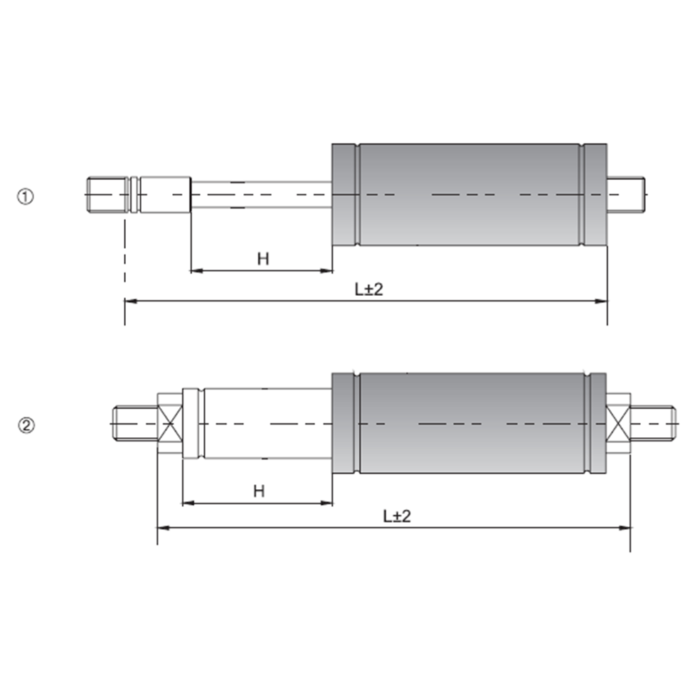

TypeExtension force F1 (Newton)Standard length GL (mm)ProgressionExtras
Z 06-1930-330L = 2 x H + 10010%6
Z 10-28150-1200L = 2 x H + 10020%6
Z 10-40200-2000L = 2 x H + 15030%6
Z 28-40500-5000L = 2,5 x H + 12540%6

Piston rods, end fittings and strokes are equivalent to the according standard series in normal steel. Eyelets on the cylinder are equivalent to the according piston rod end fittings.
