Series V4 gas springs

Stainless steel gassprings


Features
Piston rodAISI 316L
CylinderAISI 316Ti
FittingsAISI 316L

Highest corrosion resistance, valve, wiper ring, unmagnetic, stainless steel design.

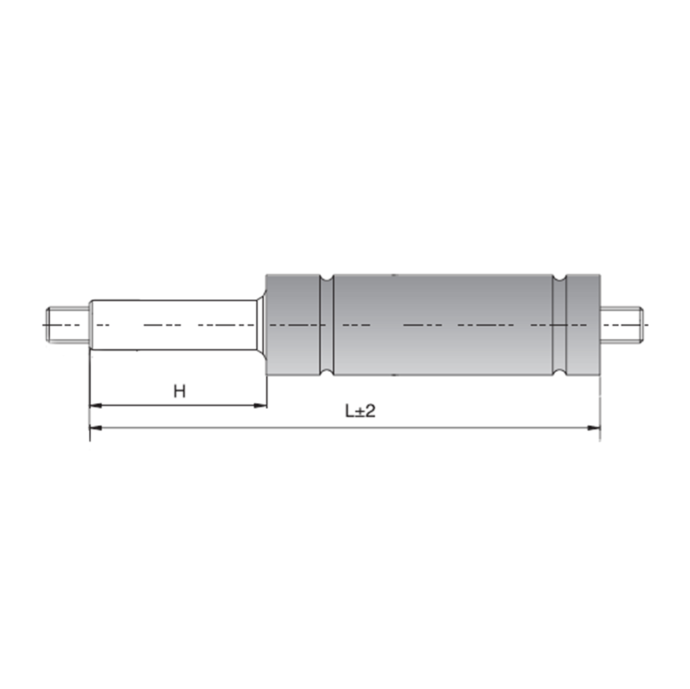

TypeExtension force F1 (Newton)Standard length GL (mm)ProgressionExtras
G 06-1540-400L = 2 x H + 5525%4,6,7
G 08-1960-700L = 2 x H + 7030%4,6,7,8
G 10-23100-1100L = 2 x H + 7030%4,6,7,8
G 10-28100-1100L = 2 x H + 7020%4,6,7,8
G 14-28200-2500L = 2 x H +10740%4,6,7,8
G 20-40300-5000L = 2 x H + 13840%4,6,7

Piston rod, end fittings and strokes are equivalent to the according standard series in normal steel. Eyelets on the cylinder are equivalent to the according piston rod end fittings.
