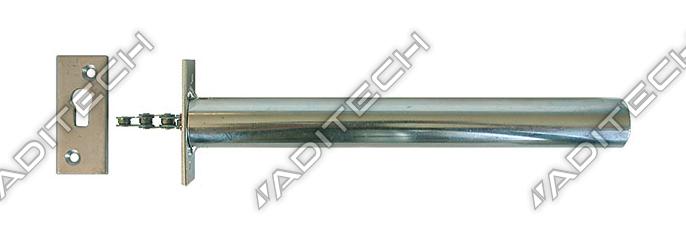

Concealed Door Closer
| Version | Closing force | Article-Nr. |
|---|---|---|
| Closing force is adjustable. | 120-400 N | 92300119 |

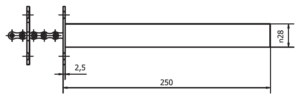

| Diameter of spring tubes. | Ø 28 mm | |
| Opening angle of door. | bis 180° | |
| Surface galvanized. |
The concealed door closer is integrated into the door for aestethic and anti-vandal purposes. This model can be mounted onto any position of the door. Due to its small diameter this model is mainly used in woodendoors. The concealed door closer can be used in both flush and overlapping doors.
